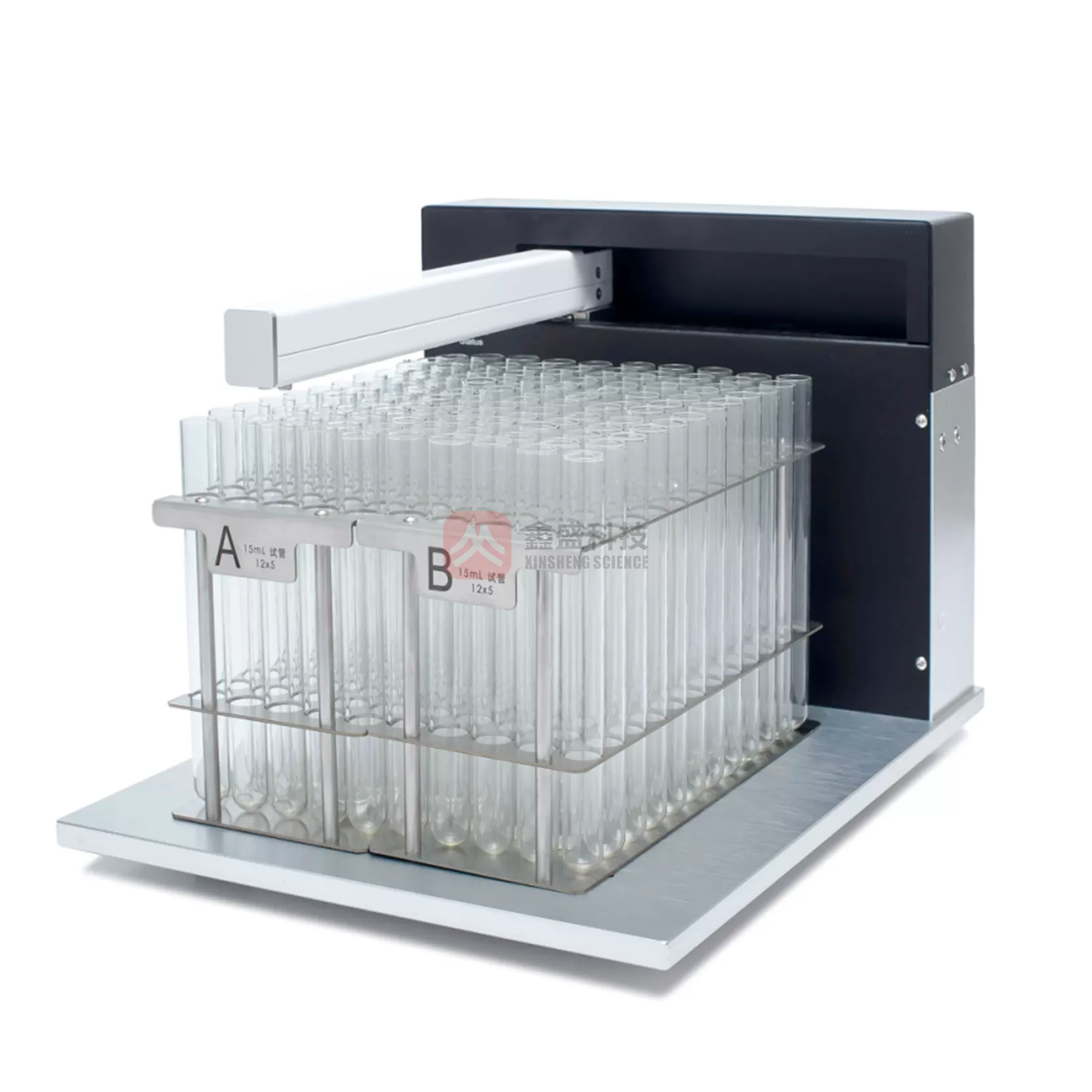

This product is a fully automated fraction collector. It provides mobile phase fraction collection and is suitable for various applications requiring the separation and collection of fluid components. These include, but are not limited to: HPLC systems, chromatographic systems, and biochemical product preparation and purification.
Classic X- and Y-axis design, compact and lightweight with a small desktop footprint.
Intuitive and visual control software enables manual, semi-automatic, or automatic collection across multiple modes.
Fractions can be collected based on time, volume, peak, or slope.
Compatible with various brands of modular or integrated chromatography systems and works with different detectors.
Tube rack: accommodates tubes, centrifuge tubes, or volumetric flasks of different sizes, with a capacity of up to 120 fractions.
Easy to install, safe and reliable, low noise, and simple maintenance.
Precise tubing design minimizes dead volume and reduces collection errors caused by diffusion.
Collection preview function for easier method development and optimization.
| Size | 260*240*350（W*H*D） |
| Weight | 7.6Kg |
| power supply | 85-264VAC, power 50W |
| volume | 120-position (Φ15*150mm, 15mL glass test tube) 88-position (Φ17*120mm, 15mL centrifuge tube) 42-position (Φ28*115mm, 50mL centrifuge tube) |
| Switching speed | Maximum speed: 0.1 seconds (adjustable) |
| Flow range | 0.01～200ml/min |
| Operating power | AC110～220V±10%，50HZ |
| Operating environment | Temperature: 0℃ to +40℃, relative humidity less than 80% |
