DAD detector is a diode array UV detector specially developed for chromatography, environmental protection, online monitoring and other fields. The detector adopts modular separation design, has an independent coupled light source and a highly sensitive polychromator spectral analysis system, uses a comprehensive method to suppress stray light and circuit noise, and has a good dynamic range and excellent resolution.
Product features:
1. Chernitna type polychromator spectral analysis system

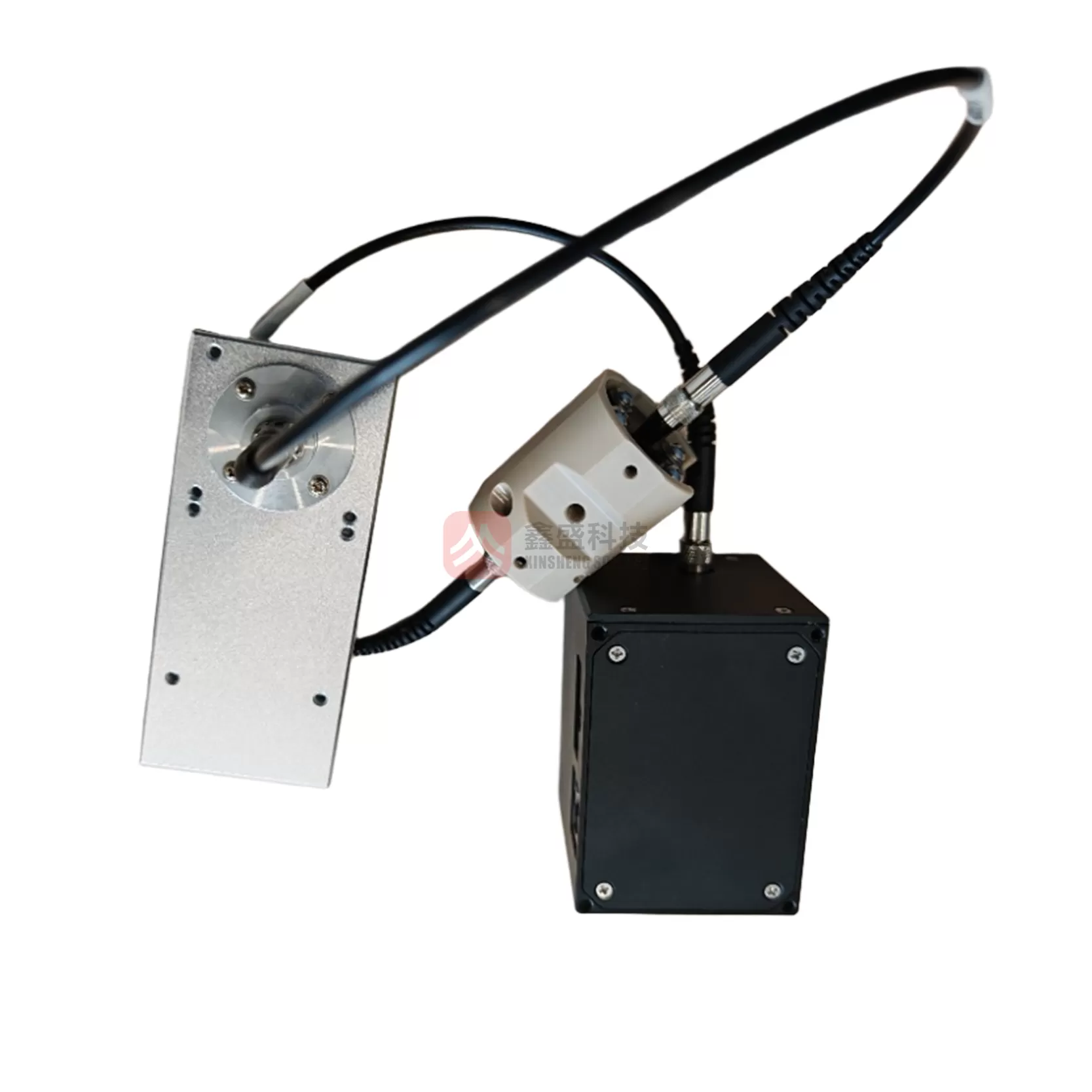

2. Use optical fiber to connect the flow cell, effectively isolate the heat source and facilitate maintenance
3. Multiple wavelengths can be set at the same time
4. No mechanical moving parts, good stability
5. Rich output interface, easy to adapt
| Wavelength range | 185-400nm（Other are optional） |
| channel signals | 2-200 |
| Scan | Support |
| Spectral resolution | 7nm |
| Wavelength accuracy | ±1nm |
| Noise | ±8x10-5AU |
| Drift | 2X10-3AU/hr |
| Liquid path material | Quartz glass, stainless steel, PEEK |
| Time constant | 0.5s,0.75s,1.0s,2.0s,4.0s,8.0s,16.0s,0.2s,0.1s |
| Input | 24V DC/220V AC Optional |
