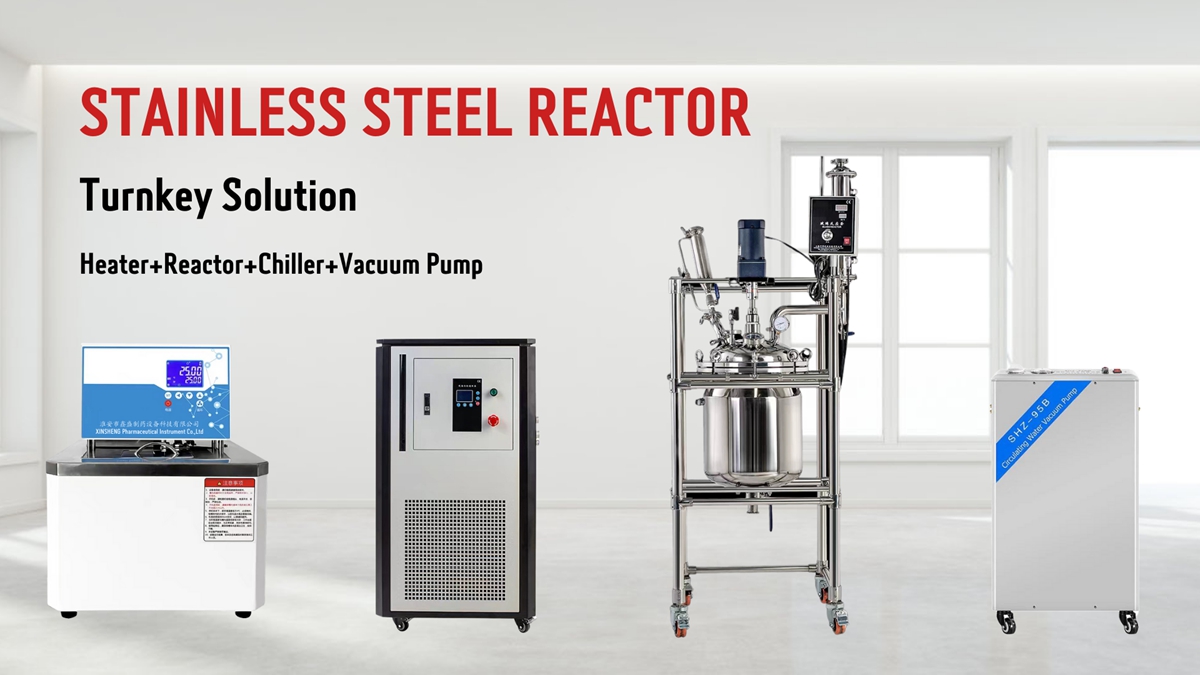

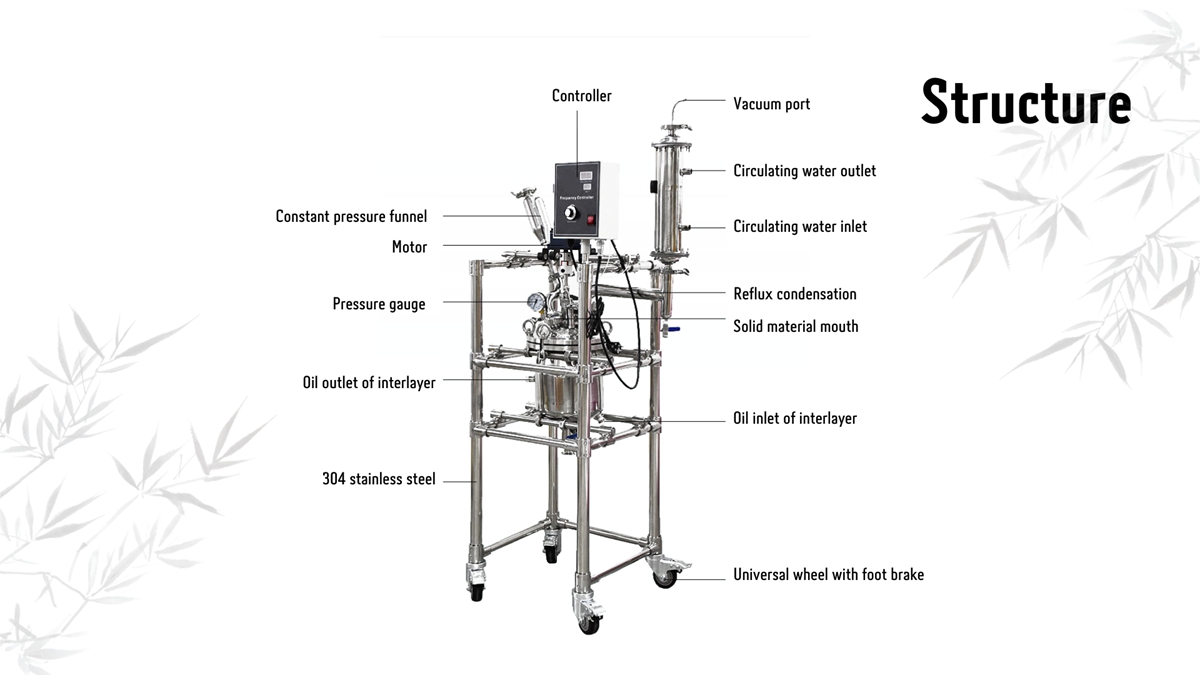

Stainless steel jacketed reactor is mainly applied in Bio-chemical, Pharmaceutical & Fine-Chemical Trades. It can be jointed with vacuum pump, chilling circulator , heating circulator is widely used in the process like Combination, Reaction, Separation,Concentration, etc It is adopted in the industry of chemical products, advanced material synthesis experiment, etc.
| Stainless steel reactor(Hot Sales) | |||||
| Model | SSR-5L | SSR-10L | SSR-20L | SSR-30L | SSR-50L |
| Reaction Capacity | 5L | 10L | 20L | 30L | 50L |
| Jacketed Volume | 2L | 3L | 6L | 10L | 16L |

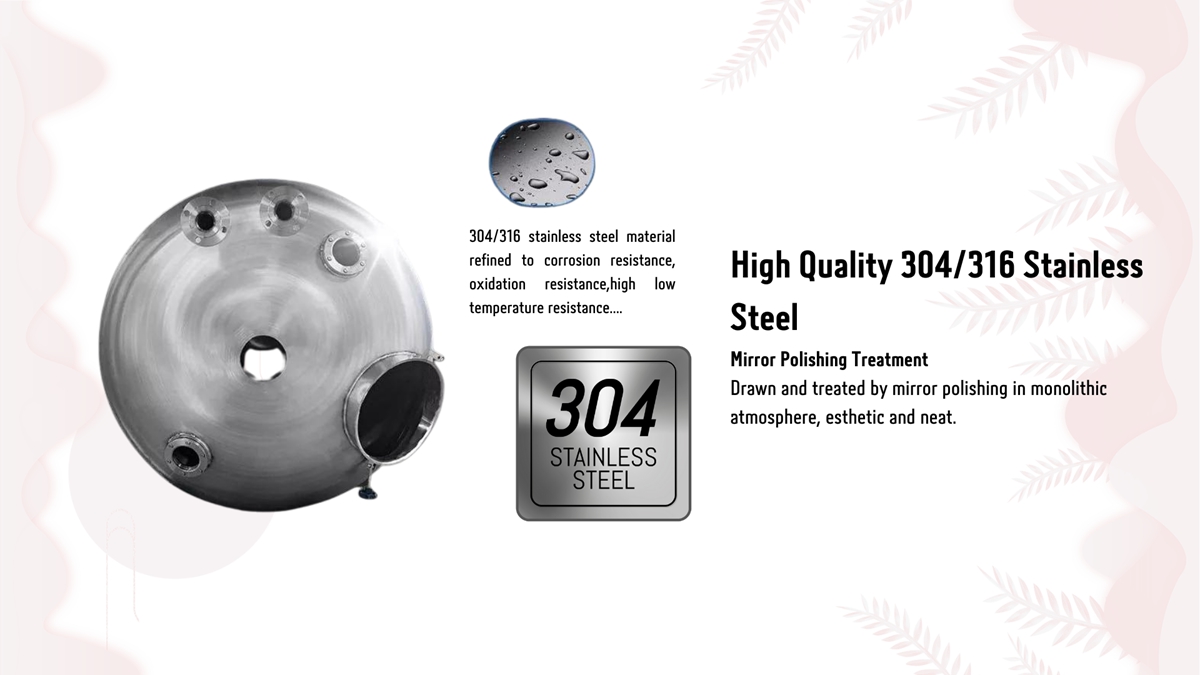

| Material | SS304 | ||||
| Thickness | Lining:4mm, shell:4mm | ||||

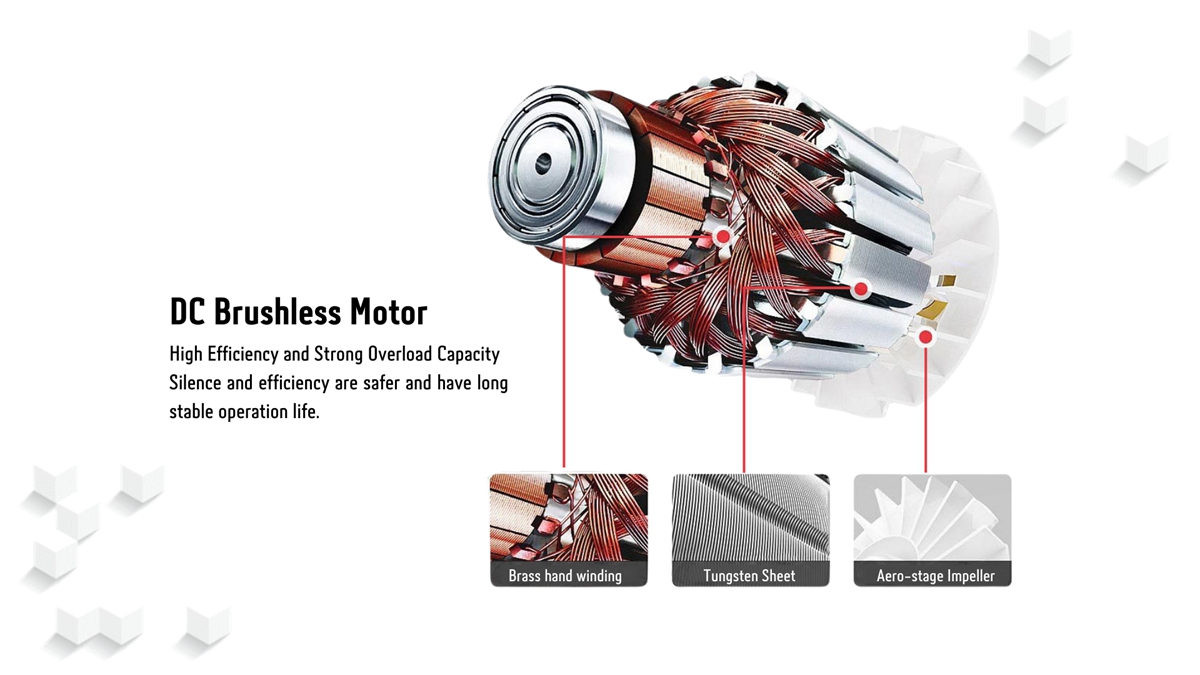

| Motor | 120W | 200W | |||
| Rotating speed | 0-600rpm | ||||
| Controller | Speed adjustment, temperature and speed LCD digital display | ||||
| Voltage | 110V/220V, 50/60Hz | ||||
| Working pressure | -1~0.49Mpa. | ||||
| Vacuum seal | 0.098Mpa | ||||

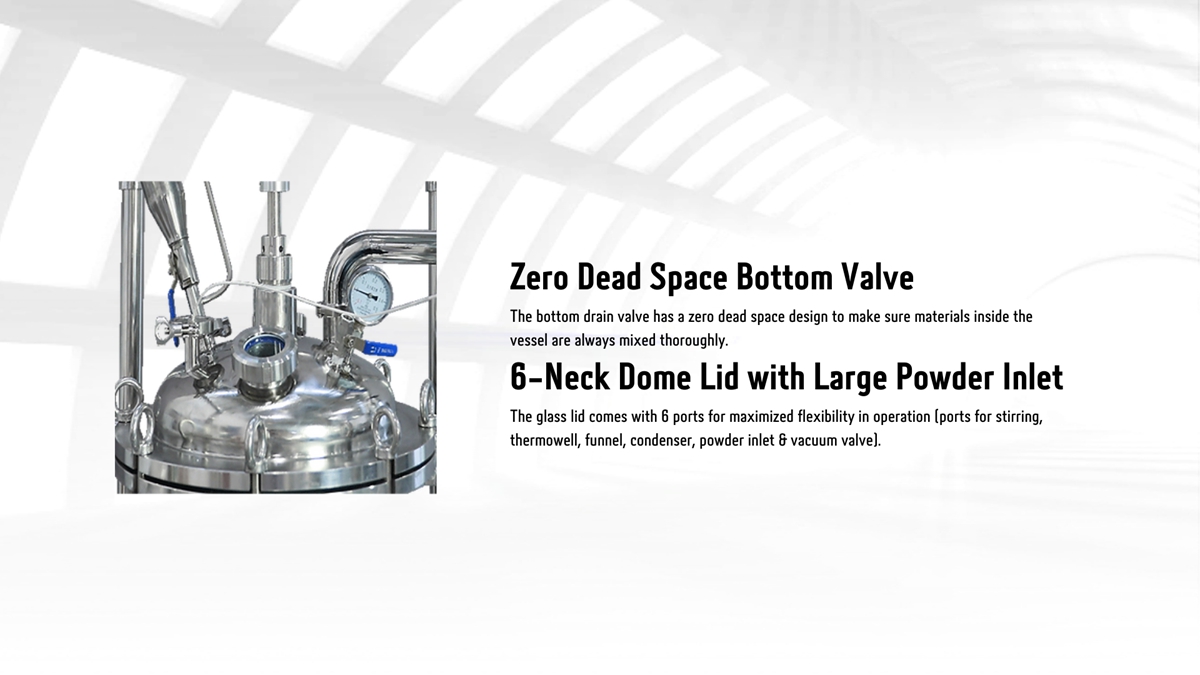

| Nine port on lid(According your demand) | Stirrer port: 32# mechanical seal | ||||
| Solid feeding port with view mirror: Φ55 Union | |||||
| Temperature measuring port: Φ19 Quick-opening valve | |||||
| Reflux port: Φ38 Quick-opening valve | |||||
| Exhaust port: DN20 Ball valve | |||||
| View/Lighting port: Φ38 Union | |||||
| Nitrogen gas port: Φ8mm LOK-Fittings | |||||
| Constant pressure drop funnel port: Φ19 Quick-opening valve | |||||
| Pressure gauge: φ8mm Female Thread | |||||
| Constant pressure drop funnel | Stainless steel 500ml | Stainless steel 1L | Stainless steel 2L | ||
| Condenser | Stainless steel serpentiform condenser | ||||
| Discharge valve | DN32 Ball valve | ||||

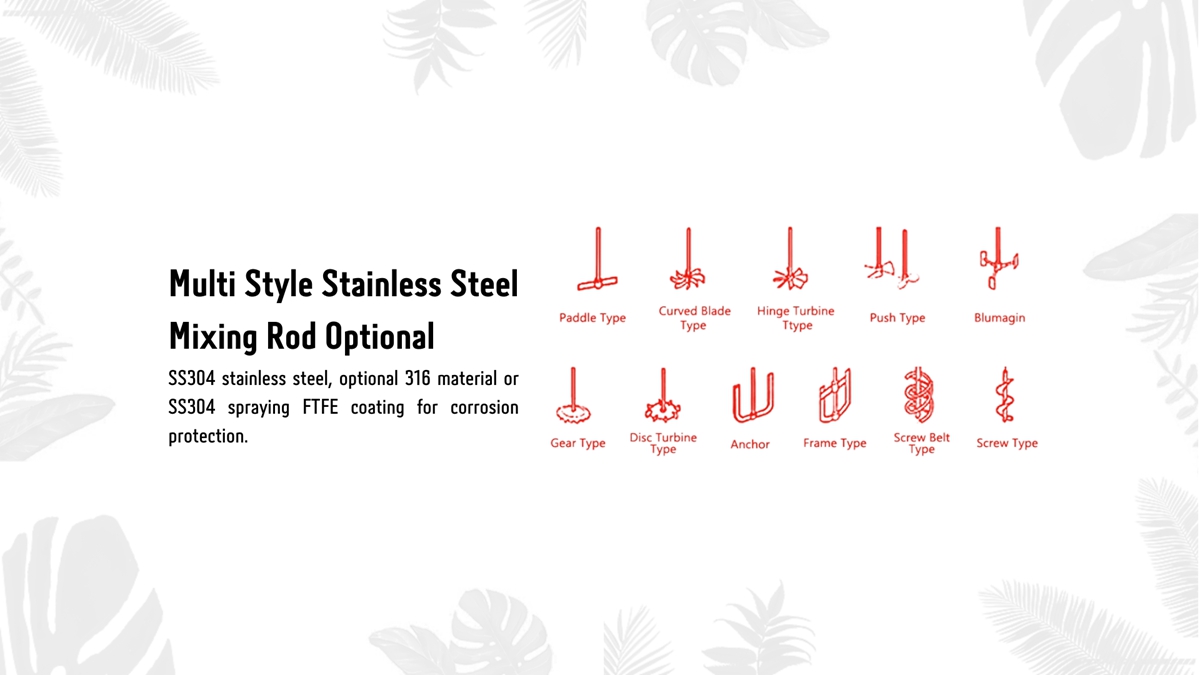

| PTFE Stirrer | Φ12 Anchor agitator, other styles are available | Φ14 Four-blads, two layer, other styles are available. | |||
| Frame | 304 Stainless steel | ||||
| Inlet/outlet oil port | DN15 Male Thread | DN25 Male Thread | |||

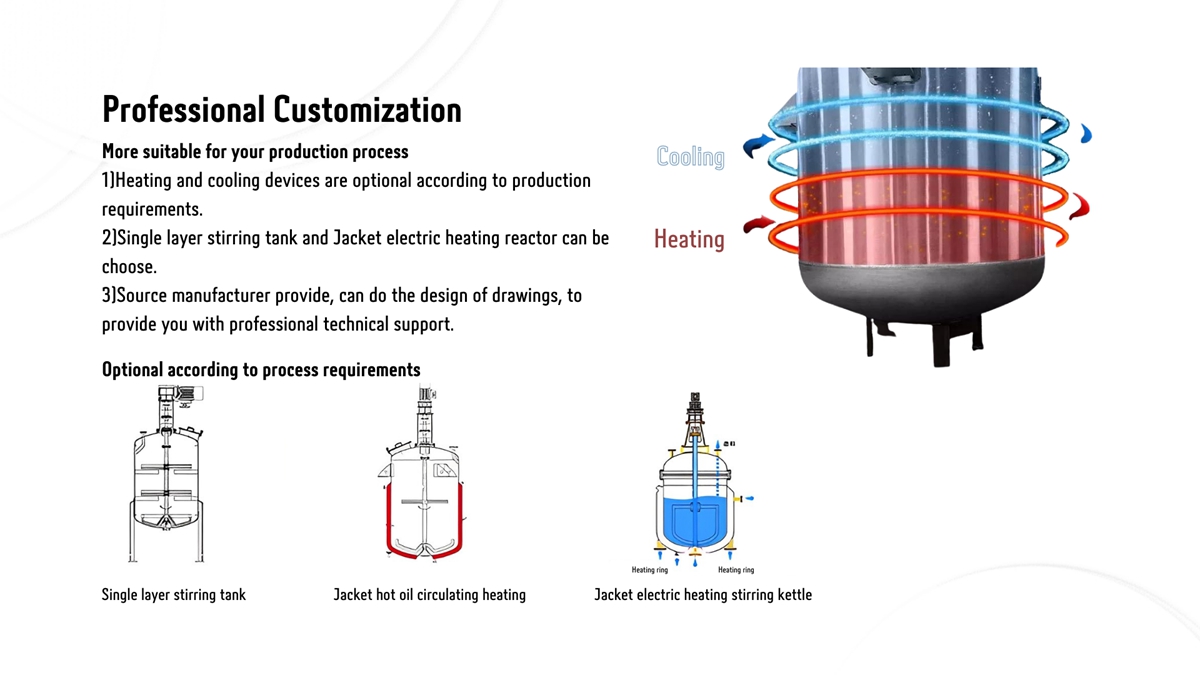

| Customized Available; Contact us for Contract Manuafcturing－More models for your choice (1L~200L) | |||||
